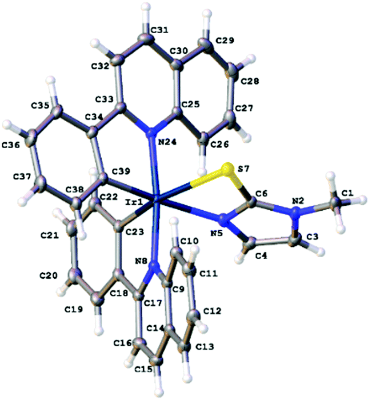

图1 X-ray crystal structure of HSA-Ir Probe [1].
图2 HSA-Ir Probe和考马斯亮蓝染色效果对比图 [1].(a) The gel of different concentrations of HSA treated with Coomassie blue G250 (100 mg L1 , 1 h) or Ir1 (5 mM, 2 min) after separation. (b) Selective staining: the gel of HSA, blood serum and mixture of other proteins (hemoglobin, transferrin, myoglobin, g-globulin, hemin, lysozyme, apo-transferrin, methemoglobin and holo-transferrin) was stained with Ir1. Lanes A and D: mixture of other proteins; lane B: HSA; lane C: HSA + mixture of other proteins; lane E: blood serum; lane F: blood serum + mixture with other proteins. (c) The gel of HSA (10 mg) per lane and then treated with Ir1 for different incubation times after separation. Twice in parallel with each experiment. (d) The gel of different concentrations of HSA and then treated with Ir1 after separation.
